Why direction outranks width here
On every other crack pattern, width is the headline. A hairline vertical crack is cosmetic; the same crack at 1/2 inch is a different conversation. A horizontal crack breaks that rule, and it is the only pattern that does.
The reason is mechanical. Vertical cracks open because the wall is being stretched along its length — shrinkage, a footing dropping slightly — and the wall keeps doing its job while it happens. A horizontal crack forms because the wall is bending. Soil outside pushes inward, the wall resists in flexure, tension peaks on the inside face near mid-height, and the concrete or the mortar bed gives way in a line running the length of the wall. That crack is the wall's hinge. Once a hinge exists, the wall's capacity to resist the next wet spring is lower than it was, and the load is still there.
So a hairline horizontal crack carries the same diagnosis as a wide one: soil pressure is exceeding what the wall can take. The width tells you how far the process has run, and the direction tells you what the process is. Treat it as structural and get it assessed. This is the one place on this site where the answer is an engineer rather than a pencil mark.

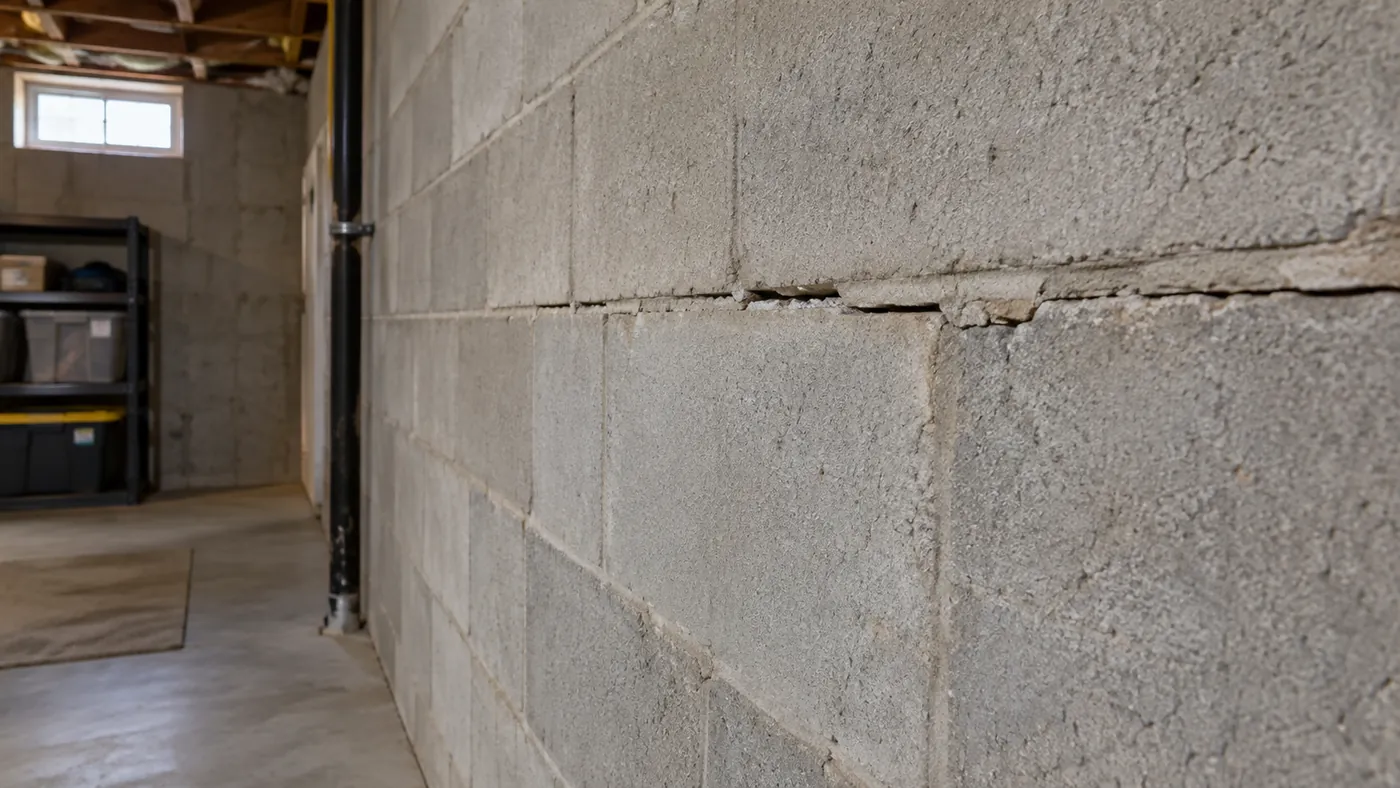

Two related patterns belong in the same bucket. A horizontal crack in concrete block tends to run along a single mortar bed, often four to five courses up, because that joint is the weakest line — see crack in a foundation wall for why block behaves that way. And a horizontal crack whose two faces sit at different depths means the wall has already displaced, which raises the urgency rather than the diagnosis.
Measuring the bow — the free number that sets the repair
Repair method is chosen from deflection, not from crack width, so this measurement is the one that matters and it costs nothing.
- Run a taut string from floor to ceiling against the wall, or hold a long straightedge vertically against it. Keep both ends touching the wall.
- Measure the largest gap between the string and the wall, which will usually be near mid-height. That gap is the bow.
- Repeat at two or three points along the wall and keep the largest reading.
- Write the number, the location and the date on the wall in pencil, and photograph it with the tape in frame.
- Re-measure in six months. A second dated number is worth more to an engineer than any description you can give them.
Under 2 inches of bow, carbon fiber straps are generally viable — they bond to the interior face and stop further bending, and they are the least invasive option. At 2 inches or more, the wall needs mechanical restraint that can hold a load: anchors reaching into stable soil beyond the failure plane, or steel beams tied to the joists above and the slab below. A crack monitoring gauge at $10 – $25 is a worthwhile addition here, because on a horizontal crack you are documenting an active mechanism rather than deciding whether one exists.
What put the pressure there
- Saturated soil. Wet soil is heavier and pushes harder. Clay pushes hardest of all, because it swells as it takes on water and has nowhere to expand except against your wall.
- Drainage delivering water to the wall. Gutters discharging at the foundation, downspouts ending a foot from the house, or grade sloping back toward the wall. This is the most common single contributor and the cheapest to correct.
- Frost. In northern climates, water freezing in the soil expands and presses laterally against the upper wall. Repeated each winter, it is cumulative.
- Surcharge loads. A vehicle parked close to the wall, a new patio or driveway, stacked fill or a large planter. Anything adding weight within a few feet of the foundation adds lateral pressure below.
- Backfill that was never right. Heavy equipment compacting against a fresh wall, or backfill placed before the first floor braced the top of the wall, leaves damage that shows up years later.
- Tree roots. Large roots displace soil volume against the wall and, in clay, change its moisture cycling as well.
What the repair costs, by bow
| What you measured | Typical cost | Approach | What’s going on |
|---|---|---|---|
| Hairline horizontal, no measurable bow | $450 – $600 | Engineer first | Confirm the mechanism, then monitor and correct drainage |
| Bow under 2 in. at mid-height | $2,500 – $7,000 | Carbon fiber | Straps bonded floor to sill resist further bending |
| Bow of 2 in. or more | $4,000 – $15,000 | Anchors or beams | Mechanical restraint tied to soil or floor structure |
| Bow with displaced or sheared courses | $20,000 – $40,000 | Rebuild | Excavate, take the wall down, rebuild and re-drain |
| Any bow with a wet wall | $3,000 – $12,000 | Add drainage | Relieving the water is what stops the pressure returning |
Source: Repair thresholds follow standard residential structural reinforcement practice; installed prices compiled from published 2025–2026 contractor pricing datasets across all US regions. Scope on any structural row is set by an engineer's findings rather than by the crack's appearance. · Last reviewed July 30, 2026 · Reference data · How we compile these figures
The first row is worth reading carefully. A horizontal crack with no measurable bow still warrants the engineer, and the outcome of that visit is often monitoring plus drainage correction rather than reinforcement. That is a real result, and it is the one you can only reach by paying for an opinion from someone with nothing to install.
| Line item | Typical range | Unit | What drives it |
|---|---|---|---|
| Crack monitoring gauge | $10 – $25 | each | Documents whether the crack is still opening |
| Structural engineer report | $450 – $600 | per visit | Sizes the repair and defines the bid scope |
| Carbon fiber strap, installed | $400 – $800 | each | Spacing of 4 – 6 ft sets how many a wall needs |
| Wall anchor, installed | $700 – $1,900 | each | Needs yard access to set the earth plate |
| Steel I-beam brace, installed | $500 – $1,200 | each | Used where the yard is too tight for anchors |
| Building permit | $75 – $400 | per job | Required for structural reinforcement in most jurisdictions |
| Exterior grading and downspout work | $100 – $600 | per house | The cheapest pressure reduction available |
| Interior drain tile and sump | $3,000 – $12,000 | per basement | Relieves hydrostatic pressure against the wall base |
Source: Per-unit installed prices compiled from published 2025–2026 contractor pricing datasets; permit ranges from municipal fee schedules across US metros. Strap and anchor counts assume standard 8 ft basement walls. · Last reviewed July 30, 2026 · Reference data · How we compile these figures
Quotes on this work vary widely because the count of straps or anchors is a judgment call, and because some proposals bundle drainage and some leave it out. Full comparisons sit in bowing basement wall repair cost and basement crack repair cost.
Fixing the cause, or paying for the wall twice
Straps and anchors resist pressure. They do nothing about the water that generates it. A reinforcement job that leaves the drainage untouched holds the wall where it is and lets the same soil keep pressing, which is why quotes worth taking seriously address both.
Start with the outside, because it is by far the cheapest lever available. Extending downspouts six to ten feet from the house, clearing gutters, and regrading soil to fall away from the wall runs $100 – $600 and reduces the water arriving at the foundation more than most people expect. Where the water is already in the soil around the footing, interior drain tile and a sump run $3,000 – $12,000 and relieve hydrostatic pressure at the base of the wall.
Ask any contractor bidding reinforcement what their proposal does about water. The answer separates a repair that holds from one that gets revisited.
Getting the sequence right
Order matters more than speed here.
- Measure the bow and photograph it with a date. Free, and it becomes the baseline for everything that follows.
- Hire an independent structural engineer at $450 – $600. They sell the assessment and nothing else, so the finding is the same whether your wall needs monitoring or $15,000 of anchors.
- Take the report to three contractors and have them bid that scope. Identical scope is the only condition under which quotes can be compared.
- Confirm the permit at $75 – $400 and check that the warranty is transferable to a future buyer.
- Re-measure the bow annually after the work, on the same marks. A repair that holds shows the same number year after year.
Doing step two before step three is the whole point. A free inspection arrives with a product attached; the engineer arrives with a tape measure and a stamp, and their document is what turns three sales visits into three comparable numbers.
